Fiberglass Grating

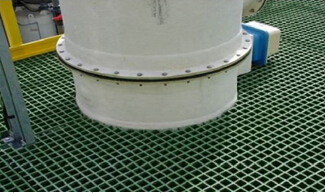

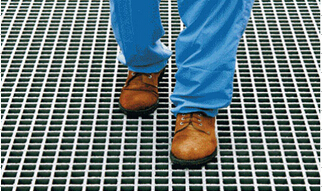

Fiberglass grating is rustproof, slip-resistant, lightweight and easy to install. It combines corrosion resistance with strength, long life and safety for reliable service in harsh or caustic environments where carbon or stainless steel is not suitable (chemical processing, refining, offshore, pulp and paper, food and beverage, marine, water and wastewater treatment, electronics, plating and Electro isolated Flooring).
 |
 |
Resin Systems
Fiberglass grating is available in three standard resin systems each providing differing levels of corrosion protection. All three resin systems meet Class 1 Flame Spread Rating per ASTM E-84 test standards.
- Ortho Resin: General Purpose Polyester Resin System offers good corrosion resistance at an economical price.
- ISO Resin: premium grade Isophthalic Polyester Resin System that provides excellent corrosion protection.
- Vinyl Resin: Vinyl Ester Resin System provides the highest level of corrosion protection.
Standrad Size
|
Thick
|
Mesh size
|
Panel size
|
Open area
|
Weight
|
|
(MM)
|
(MM)
|
(MM)
|
%
|
(kg/m2)
|
|
25
|
38*38
|
1220*3660
|
68
|
12.5
|
|
1220*4000
|
||||
|
1110*4080
|
||||
|
30
|
38*38
|
1220*3660
|
68
|
14.75
|
|
40
|
40*40
|
1007*4047
|
67
|
20
|
|
38
|
38*38
|
1220*3660
|
68
|
19.5
|
|
1524*4000
|
||||
|
50
|
50*50
|
1220*3660
|
71
|
23.5
|
|
30
Mini Mesh |
(top)19*19/(bottom)38*38
|
1007*4047
|
42
|
18.5
|
|
38
Mini Mesh |
(top)20*20/(bottom)40*40
|
1007*4047
|
42
|
23.7
|
|
38
Mini Mesh |
(top)19*19/(bottom)38*38
|
1220*4000
|
40
|
23.5
|
